Introduction

"A Claude Code plugin that shows what's happening."

This is Part 34 of the "Open Source Project of the Day" series. Today we explore Claude HUD (GitHub).

When writing code with Claude Code, you often can't easily see how much context has been used, which tools are currently running, whether sub-agents are active, or how far along the Todo list is — you have to dig through logs or wait for prompts. Claude HUD brings all of this right into your terminal, below the input field: one or more persistent status bars that show context health, tool activity, Agent status, and Todo progress in real time. Data comes from Claude Code's statusline API and transcript, with ~300ms refresh intervals — no extra windows or tmux needed, works in any terminal.

Why it's worth checking out:

• 📊 Real-time visibility: Context bar (green→yellow→red), usage bar, tools/Agents/Todos visible in one line
• 🖥️ Native integration: Uses Claude Code's statusline API — no token estimation, accurate data
• 📍 Persistent below input: Doesn't steal focus or open new windows — always in view
• ⚙️ Configurable: Preset Full/Essential/Minimal, or fine-tune individual items and layout
• 🔌 Standard plugin: Install via /plugin marketplace, use immediately with /claude-hud:setup
• 📈 Pro/Max/Team: Supports usage limit display (for subscribers)

What You'll Learn

• Claude HUD's positioning and typical display content (context, tools, Agents, Todos, Git, usage)
• Installation and configuration flow (marketplace, install, setup/configure)
• How it works: stdin JSON + transcript JSONL, ~300ms updates
• Configuration overview: lineLayout, pathLevels, gitStatus, display, etc.
• Presets and manual config.json editing
• Comparison with "no HUD" or custom monitoring approaches
• Usage and troubleshooting tips

Prerequisites

• Currently using or planning to use Claude Code (terminal version)
• Basic understanding of "context window" and "token" concepts is helpful
• Local requirements: Claude Code v1.0.80+, Node.js 18+ or Bun

Project Background

Project Introduction

Claude HUD is a real-time status bar plugin for Claude Code. It sits in your terminal, below the input field, persistently showing what's happening in the current session:

• Project path: Current directory (configurable 1–3 levels)
• Context health: Context window usage (progress bar + color) to avoid sudden context overflow
• Tool activity: Currently running or recently completed tools (Read, Edit, Grep, etc.) and their counts
• Agent status: Current sub-agent, model, task description, and elapsed time
• Todo progress: Task completion status (e.g., 2/5)
• Git: Branch, dirty state, ahead/behind, file statistics (optional)
• Usage: Pro/Max/Team users' rate-limit usage and 7-day breakdown (optional)

Data comes from Claude Code's native statusline API (including real token data) and transcript JSONL (parsing tools, Agents, and Todos), with an update frequency of approximately 300ms, no estimation needed.

Target users:

• Developers who code and debug with Claude Code daily
• Users who need to always know context and usage to avoid limits or slowdowns
• People who want to observe tool calls and sub-agent behavior for debugging or learning
• Users who want a "see session status at a glance" experience without switching windows

Author/Team Introduction

• Author: jarrodwatts (GitHub)
• Repository: Open-source plugin with complete README, CHANGELOG, CONTRIBUTING, tests, and release notes

Project Stats

• ⭐ GitHub Stars: ~3.7k+ (GitHub)
• 🍴 Forks: ~166
• 📦 Repository status: Actively maintained; contains .claude-plugin/, commands/, src/, dist/, tests/
• 📄 License: MIT
• 📚 Documentation: README includes installation, configuration, options, troubleshooting; Claude Code Marketplace has an introduction

Tech stack: TypeScript, Node.js 18+ or Bun, integrated via Claude Code's plugin and statusline API.

Main Features

Core Purpose

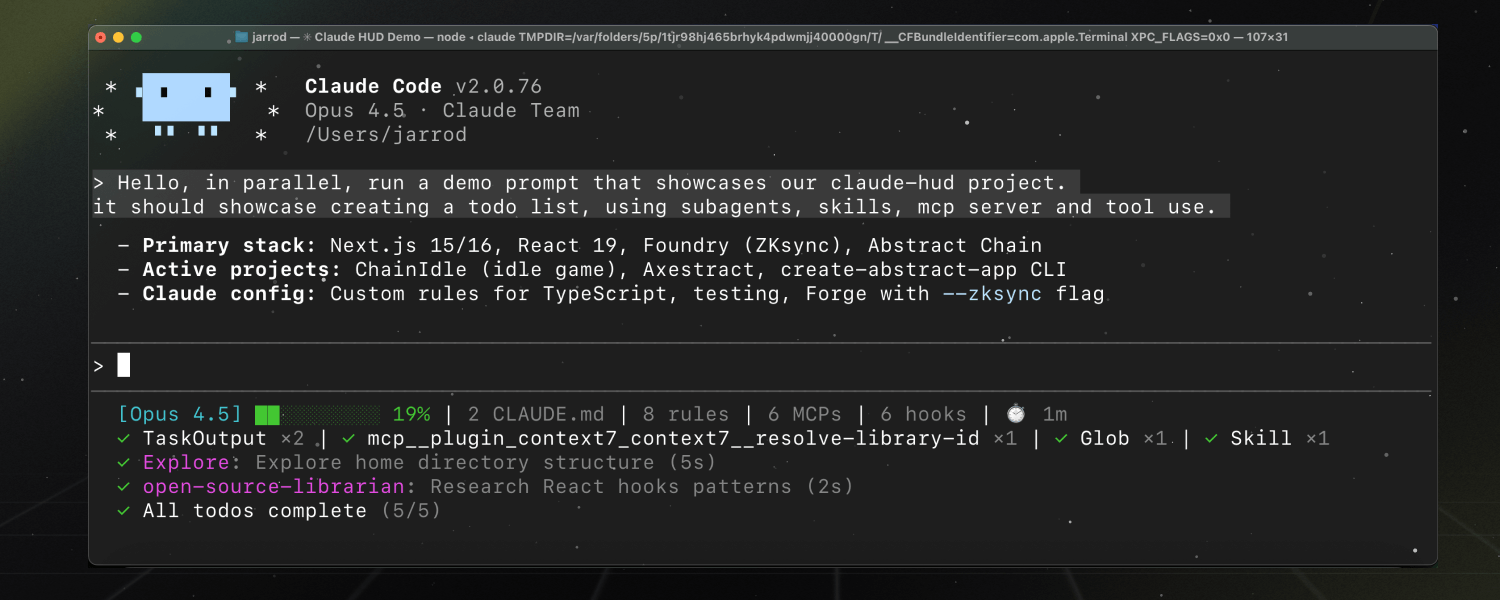

Claude HUD's core purpose is to provide one or more persistent real-time status bars inside the Claude Code terminal so you can see without leaving the current session:

1. Context usage: Progress bar + percentage (or token count), color changes with usage (green→yellow→red), shows token breakdown at high usage
2. Tool activity: Currently executing or just-completed tools (e.g., Edit, Read, Grep) and their counts
3. Sub-agent status: Running Agents, the model used, task description, and elapsed time
4. Todo progress: Current task list completion status (e.g., 2/5)
5. Project and Git: Current path (1–3 levels), branch, uncommitted changes, ahead/behind, file statistics (configurable)
6. Usage limits: Pro/Max/Team users' rate-limit usage bar and 7-day breakdown (optional)

All of this without interrupting input or opening additional windows, improving "observability" of the session.

Use Cases

1. Daily coding

   • Check context at any time to decide whether to compress or start a new session
   • See which file is currently being edited/read, whether tools are stuck

2. Debugging and observing

   • See what sub-agents are doing and how long they've been running
   • Check which Todo has been reached to align progress with Claude

3. Usage and quota management

   • Pro/Max/Team users see daily/period usage and 7-day breakdown to avoid limit violations

4. Multi-project switching

   • Confirm the current repo and branch via path and Git info to reduce mistakes

5. Terminal-first users

   • Don't want tmux or extra windows, prefer everything in the current terminal

Quick Start

Requirements: Claude Code v1.0.80+, Node.js 18+ or Bun.

In a Claude Code session, run in order:

# Step 1: Add plugin marketplace (if not already added)
/plugin marketplace add jarrodwatts/claude-hud

# Step 2: Install the plugin
/plugin install claude-hud

# Step 3: Configure the status bar (first run guides through presets and options)
/claude-hud:setup

After completion, the HUD appears immediately below the input field — no restart required.

Linux users: If installation reports EXDEV: cross-device link not permitted (because /tmp is a separate filesystem), set TMPDIR before starting Claude Code and installing:

mkdir -p ~/.cache/tmp && TMPDIR=~/.cache/tmp claude

Then run Step 2 and Step 3 in that same session. See Claude Code related issue for details.

Subsequent adjustments: Run /claude-hud:configure at any time for guided configuration, or directly edit ~/.claude/plugins/claude-hud/config.json.

Core Features

1. Native token data

   • Uses Claude Code's statusline API — shows real token information, not estimates

2. ~300ms refresh

   • Status bar updates approximately every 300ms for near-real-time feedback

3. No extra windows needed

   • Doesn't depend on tmux or new terminals — displayed directly in the Claude Code terminal, below the input field

4. Context bar colors

   • Green→yellow→red based on usage; at high usage (e.g., 85%+) can show token breakdown

5. Tool / Agent / Todo rows

   • Optional display: tool activity row, Agent status row, Todo progress row (off by default — enable in configuration)

6. Three presets

   • Full: Tools, Agents, Todos, Git, usage, duration, etc. all on
   • Essential: Activity row + Git, moderate information
   • Minimal: Model name and context bar only

7. Layout and path

   • lineLayout: expanded (multi-line) or compact (single-line)
   • pathLevels: 1–3 directory depth levels

8. Git information

   • Branch, dirty marker (*), ahead/behind (↑N ↓N), file statistics (!M +A ✘D ?U) all toggleable

9. Usage display (Pro/Max/Team)

   • Shows rate-limit usage bar and 7-day breakdown; configurable threshold (e.g., 80%) to only show 7-day view when approaching limit

10. Configuration methods

    • Guided: /claude-hud:configure; advanced users can directly edit config.json

Project Advantages

Why choose Claude HUD?

• Designed specifically for Claude Code, deeply integrated with statusline/transcript — accurate data, fast refresh
• Zero extra windows — get a "dashboard" view within the terminal
• Presets + configurable — works out-of-the-box and can be trimmed or expanded as needed
• Open-source, well-documented — README and Issues available when problems arise

Detailed Project Analysis

Architecture and Data Flow

The data flow summary from the README:

Claude Code → stdin JSON → claude-hud → stdout → displayed in terminal
                ↘ transcript JSONL (tools, agents, todos)

• stdin JSON: statusline-related data from Claude Code (including native tokens etc.) for rendering the first line, context/usage bars
• transcript JSONL: Session transcript; claude-hud parses tool calls, sub-agents, and Todos for tool rows, Agent rows, and Todo rows
• stdout: Rendered status bar text output to terminal, displayed by Claude Code below the input field
• Update frequency: ~300ms per update, balancing real-time feel while avoiding excessive screen refreshing

Project Structure (Overview)

• .claude-plugin/: Claude Code plugin metadata and entry point
• commands/: Plugin commands (e.g., setup, configure)
• src/: Core logic (parsing statusline, transcript, generating status bar content)
• dist/: Build artifacts
• tests/: Tests

Configuration Options Overview

Configuration can be done via /claude-hud:configure or by directly editing ~/.claude/plugins/claude-hud/config.json. Main options from the README:

Layout and path

• lineLayout: expanded | compact
• pathLevels: 1 | 2 | 3 (number of project path levels to display)

Git (gitStatus)

• enabled: Whether to show Git
• showDirty: Uncommitted changes marker (*)
• showAheadBehind: ↑N ↓N
• showFileStats: !M +A ✘D ?U

Display (display)

• showModel: Whether to show model name (e.g., [Opus])
• showContextBar: Whether to show context bar
• contextValue: percent or tokens
• showUsage: Whether to show usage (Pro/Max/Team)
• usageBarEnabled: Whether usage shows as a progress bar
• sevenDayThreshold: Percentage at which to show 7-day usage (0 = always show)
• showTokenBreakdown: Whether to show token breakdown at high context usage
• showTools / showAgents / showTodos: Whether to show tool/Agent/Todo rows
• showConfigCounts, showDuration, showSpeed, etc.: Enable as needed

Invalid JSON or illegal values cause silent fallback to defaults; delete config and re-run /claude-hud:configure to generate new configuration.

Usage and Subscriptions

• Usage display requires Claude Code OAuth login, only available to Pro / Max / Team subscribers (rate-limited billing). API users are billed per token and don't have this type of usage bar.
• When using AWS Bedrock, the interface shows "Bedrock"; usage is managed by AWS and HUD doesn't show a usage bar.
• If usage doesn't appear: confirm you're logged in with a Pro/Max/Team account (not API Key) and that display.showUsage is not set to false in config.

Troubleshooting (README)

• Config not taking effect: Check JSON syntax, pathLevels and lineLayout values; if needed, delete config and run /claude-hud:configure again.
• Git not showing: Confirm you're in a Git repository and gitStatus.enabled is not false.
• Tool/Agent/Todo rows not appearing: Enable showTools, showAgents, showTodos in config; these rows only appear when there is corresponding activity.

Project Resources

Official Resources

• 🌟 GitHub: https://github.com/jarrodwatts/claude-hud
• 📚 README: Installation, configuration, options, examples, troubleshooting
• 🐛 Issues: GitHub Issues
• 📦 Claude Code Marketplace: jarrodwatts/claude-hud

Related Resources

• Claude Code: Requires v1.0.80+; Linux installation issues see anthropics/claude-code#14799
• Plugin development: See CONTRIBUTING, TESTING, RELEASING in repository

Who Should Use This

• Daily Claude Code users: Want to monitor context, tools, Agents, Todos, and usage without leaving the terminal
• Pro/Max/Team users: Need intuitive visibility into rate limits and 7-day usage
• Observability fans: Want to see "what's happening in the current session" clearly
• Terminal-first users: Don't want tmux or extra windows, prefer everything in one session
